Aluminium, Commercial Alloy

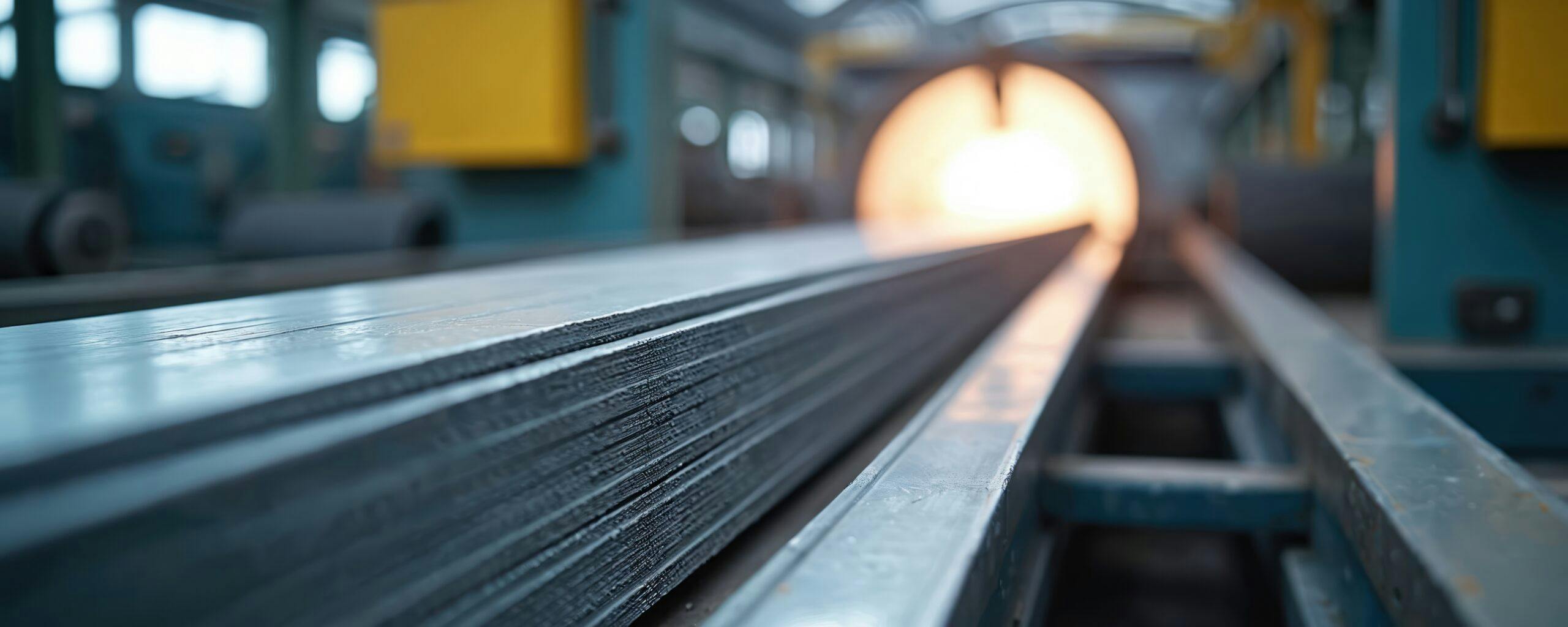

Aluminium 6082 T6 Bar & Extrusions

Structural aluminium alloy with the highest strength in the 6000 series.

Aluminium alloy 6082 is a medium strength alloy with excellent corrosion resistance. It has the highest strength of the 6000 series alloys and is known as a structural alloy.

In plate form, 6082 is the alloy most commonly used for machining. As a relatively new alloy, the higher strength of 6082 has seen it replace 6061 in many applications. The addition of a large amount of manganese controls the grain structure which in turn results in a stronger alloy.

It is difficult to produce thin walled, complicated extrusion shapes in alloy 6082. The extruded surface finish is not as smooth as other similar strength alloys in the 6000 series.In the T6 and T651 temper, alloy 6082 machines well and produces tight coils of swarf when chip breakers are used.

DOWNLOAD PDF

Range

Round bar is supplied in the T6511 temper.

Product Form Size Range Size Range
From To
Round Bar (Imperial) 3⁄16" 16"
Round Bar (Metric) 6.0mm 50.0mm
Flat Bar 3⁄8" x 1⁄8" 6" x 1"
Square Bar 1⁄4" 4"
Square Box Section 1⁄2" x 1⁄2" x 16swg 4" x 4" x 1⁄4
Rectangular Box Section 1" x 1⁄2" x 16swg 6" x 3" x 3⁄8"
Tube 3⁄8" OD x 16swg 6 1⁄2" OD x 1⁄4"
Channel 3⁄8" x 3⁄8 2 x 1⁄16" 10" x 3" x 3⁄8" x 1⁄2"
Tee Section 1⁄2" x 1⁄2" x 1⁄16" 3" x 3" x 3⁄8"
Equal Angle 3⁄8" x 3⁄8" x 1⁄16" 6" x 6" x 1⁄2"
Unequal Angle 3⁄4" x 1⁄4" x 1⁄16" 6" x 3" x 3⁄8"

PLEASE NOTE

If you do not see what you are looking for, please contact your local service centre with your specific requirements.

6082 T6 Aluminium Related Specifications

System / Standard Country / Region Grade / Designation
AA USA 6082-T6
UNS International A96082 (6082-T6)
EN / DIN Europe EN AW-6082-T6 / 3.2315
EN Name Europe AlSi1MgMn-T6
GB China 6082-T6
BS UK 6082-T6 (HE30-T6, equivalent)

Properties

Chemical Composition

Alloy 6082

Chemical Element % Present
Manganese (Mn) 0.40 - 1.00
Iron (Fe) 0.00 - 0.50
Magnesium (Mg) 0.60 - 1.20
Silicon (Si) 0.70 - 1.30
Copper (Cu) 0.00 - 0.10
Zinc (Zn) 0.00 - 0.20
Titanium (Ti) 0.00 - 0.10
Chromium (Cr) 0.00 - 0.25
Other (Each) 0.00 - 0.05
Others (Total) 0.00 - 0.15
Aluminium (Al) Balance

Open & Hollow Profile 5mm to 25mm Wall Thickness

Mechanical Property Value
Proof Stress 260 Min MPa
Tensile Strength 310 Min MPa
Elongation A50 mm 8 Min %
Hardness Brinell 95 HB
Elongation A 10 Min %

Open & Hollow Profile Up To 5mm Wall Thickness

Mechanical Property Value
Proof Stress 250 Min MPa
Tensile Strength 290 Min MPa
Elongation A50 mm 6 Min %
Hardness Brinell 95 HB
Elongation A 8 Min %

Tube 5mm to 25mm Wall Thickness

Mechanical Property Value
Proof Stress 260 Min MPa
Tensile Strength 310 Min MPa
Elongation A50 mm 8 Min %
Hardness Brinell 95 HB
Elongation A 10 Min %

Tube Up to 5mm Wall Thickness

Mechanical Property Value
Proof Stress 250 Min MPa
Tensile Strength 290 Min MPa
Elongation A50 mm 6 Min %
Hardness Brinell 95 HB
Elongation A 8 Min %

Bar 200mm to 250mm Dia. & A/F

Mechanical Property Value
Proof Stress 200 Min MPa
Tensile Strength 270 Min MPa
Hardness Brinell 95 HB
Elongation A 6 Min %

Bar 150mm to 200mm Dia. & A/F

Mechanical Property Value
Proof Stress 240 Min MPa
Tensile Strength 280 Min MPa
Hardness Brinell 95 HB
Elongation A 6 Min %

Rod & Bar 20mm to 150mm Dia. & A/F

Mechanical Property Value
Proof Stress 260 Min MPa
Tensile Strength 310 Min MPa
Hardness Brinell 95 HB
Elongation A 8 Min %

Rod & Bar Up to 20mm Dia. & A/F

Mechanical Property Value
Proof Stress 250 Min MPa
Tensile Strength 295 Min MPa
Elongation A50 mm 6 Min %
Hardness Brinell 95 HB
Elongation A 8 Min %
Physical Property Value
Density 2.70 g/cm³
Melting Point 555 °C
Thermal Expansion 24 x 10-6/K
Modulus of Elasticity 70 GPa
Thermal Conductivity 180 W/m.K
Electrical Resistivity 0.038 x 10-6 Ω .m

Applications

Characteristics

Additional Information

Weldability
Process Rating
Weldability - Gas Good
Weldability - Arc Good
Weldability - Resistance Good
Brazability Good
Solderability Good
Process Rating
Workability - Cold Good
Machinability Good
