Aluminium, Commercial Alloy

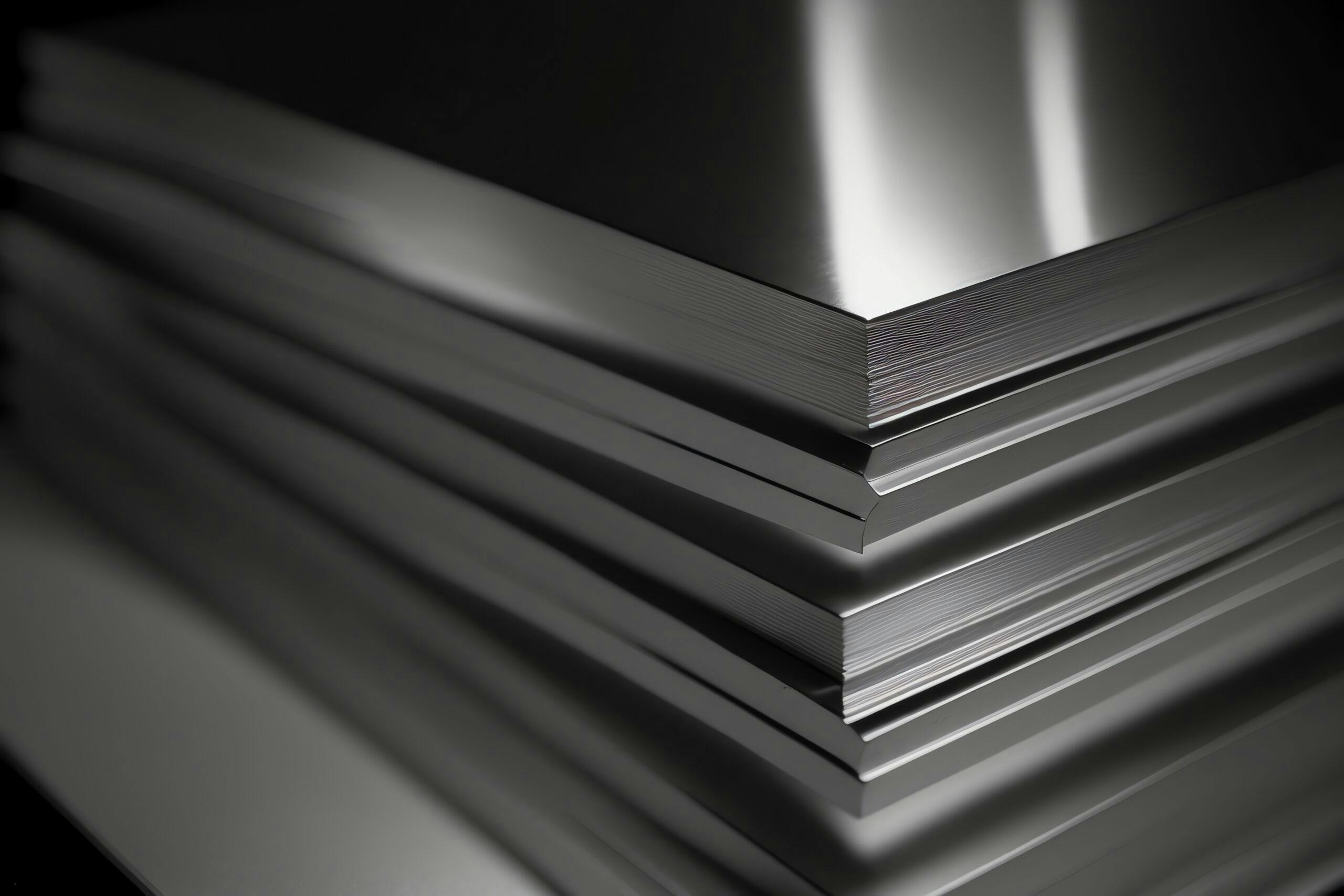

4015 H14 Sheet

High quality general purpose aluminium alloy.

Aluminium alloy 4015 is a high quality general purpose alloy. It is a close relation to 3103 AlMn alloy, but with a higher silicon content.

This alloy can be welded, anodized* or painted. (*It should be noted that the anodized finish of alloy 4015 will be much darker and less reflective that on alloys 1050 or 3103 so this is not recommended for decorative applications).

Many users now prefer to use alloy 4015 having switched from other alloys such as 1050 and 3103.

Please note that the mechanical properties quoted are for H14 temper.

DOWNLOAD PDF

Range

PLEASE NOTE

If you do not see what you are looking for, please contact your local service centre with your specific requirements.

4015 H14 Aluminium Related Specifications

System / Standard Country / Region Grade / Designation
AA USA 4015-H14
UNS International A94015 (4015-H14)
EN / DIN Europe EN AW-4015-H14
EN Name Europe AlSi2Mn-H14

Properties

Chemical Composition

Alloy 4015

Chemical Element % Present
Iron (Fe) 0.00 - 0.70
Copper (Cu) 0.00 - 0.20
Magnesium (Mg) 0.10 - 0.50
Silicon (Si) 1.40 - 2.20
Zinc (Zn) 0.00 - 0.20
Manganese (Mn) 0.60 - 1.20
Other (Each) 0.00 - 0.05
Others (Total) 0.00 - 0.15
Aluminium (Al) Balance

Sheet 0.2mm to 3.00mm

Mechanical Property Value
Tensile Strength 150 - 200 MPa
Proof Stress 120 Min MPa
Hardness Brinell 50 HB
Physical Property Value
Density 2.72 g/cm³
Melting Point 600 °C
Thermal Expansion 24 x 10-6/K
Modulus of Elasticity 70 GPa
Thermal Conductivity 150-200 W/m.K
Electrical Resistivity 0.023-0.029 x 10-6 Ω .m

Applications

Characteristics

Additional Information

Fabrication

Corresponds to alloy 3103 in same temper but may not be a direct equivalent.

r/t performance dependent upon thickness – approx figures for H12 r/t min bend radius for 180 degree bend are shown below:

Thickness

0.5-0.8mm: r/t 0.0

0.8-1.5mm: r/t 1.0

1.5-3.0mm: r/t 2.0

Process Rating
Workability Cold Very Good
Machinability Acceptable
Weldability - Gas Very Good
Weldability - Arc Very Good
Weldability - Resistance Good
Brazability Very Good
Solderability Very good

Suitable for MIG and TIG welding using normal aluminium welding conditions. Recommended welding wire is 4043 (Al Si5).
